Dirt Bike Sprocket Calculator

dirt bike sprocket calculator formula

The formula to calculate the final drive ratio for a dirt bike using the sprocket sizes is:Final Drive Ratio=Rear Sprocket TeethFront Sprocket Teeth\text{Final Drive Ratio} = \frac{\text{Rear Sprocket Teeth}}{\text{Front Sprocket Teeth}}Final Drive Ratio=Front Sprocket TeethRear Sprocket Teeth​

Example:

  • Front sprocket (countershaft): 13 teeth
  • Rear sprocket: 50 teeth

5013=3.85\frac{50}{13} = 3.851350​=3.85

This means the rear wheel rotates once for every 3.85 rotations of the engine’s front sprocket.

Speed Calculation:

To estimate speed at a given RPM, use:Speed (mph)=RPM×Tire Circumference×60Final Drive Ratio×Primary Ratio×Transmission Ratio×63360\text{Speed (mph)} = \frac{\text{RPM} \times \text{Tire Circumference} \times 60}{\text{Final Drive Ratio} \times \text{Primary Ratio} \times \text{Transmission Ratio} \times 63360}Speed (mph)=Final Drive Ratio×Primary Ratio×Transmission Ratio×63360RPM×Tire Circumference×60​

where:

  • Tire Circumference = π×diameter of the wheel (in inches)\pi \times \text{diameter of the wheel (in inches)}π×diameter of the wheel (in inches)
  • Primary Ratio = Ratio inside the engine (varies by model)
  • Transmission Ratio = Gear ratio for the selected gear
  • 63360 = Converts inches per minute to miles per hour

Dirt Bike Sprockets: The Complete Guide

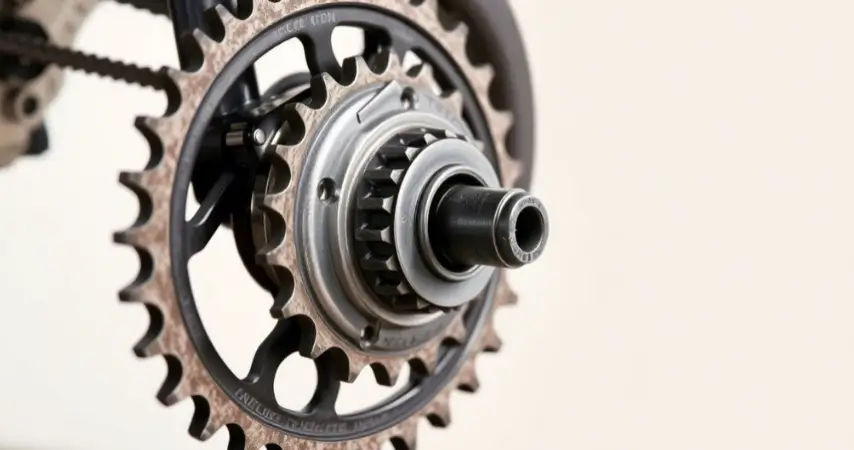

Dirt Bike Sprocket

Dirt bike sprockets play a crucial role in the performance, speed, and overall handling of your motorcycle. To understand their significance, it’s essential to first define what they are and how they contribute to the overall functionality of a dirt bike.

What Are Dirt Bike Sprockets?

Sprockets are toothed wheels that connect the engine to the rear wheel via a chain. In a dirt bike, there are two main types of sprockets: the front (countershaft) sprocket and the rear sprocket. These components work together as part of the transmission system to transfer power from the engine to the rear wheel, enabling the bike to move forward.

The front sprocket is attached directly to the crankshaft, while the rear sprocket is bolted onto the rear wheel hub. Together, these sprockets form a critical link in the drivetrain, ensuring smooth power delivery and optimal performance across various terrains.

Why They Matter in Performance, Speed, and Control

Sprockets are instrumental in determining how your dirt bike performs under different conditions. By adjusting the number of teeth on the front and rear sprockets, you can fine-tune the gear ratio, which directly impacts acceleration, climbing ability, fuel efficiency, and top speed. For instance, a higher gear ratio (more teeth on the rear sprocket or fewer on the front) provides greater torque, making it easier to climb steep hills but sacrificing some speed. Conversely, a lower gear ratio offers faster acceleration and higher speeds at the expense of less torque.

Understanding this relationship allows riders to optimize their bikes for specific riding styles and environments. Whether you’re tackling motocross tracks, long-distance trails, or enduro competitions, selecting the right sprocket combination can significantly enhance your riding experience.

Quick Overview of Front vs. Rear Sprockets

While both front and rear sprockets serve similar purposes, they each have distinct characteristics that influence the bike’s behavior. The front sprocket, being closer to the engine, has a direct impact on how quickly the bike accelerates. It typically ranges from 13 to 17 teeth, depending on the model and intended use.

On the other hand, the rear sprocket is positioned near the rear wheel and usually features between 42 and 50 teeth. Its size plays a pivotal role in determining the overall gear ratio and, consequently, the bike’s speed and torque output. Riders often adjust the rear sprocket more frequently than the front due to its broader range of customization options.

2. How Sprockets Work

To fully appreciate the importance of dirt bike sprockets, it’s necessary to delve into the mechanics of the chain and sprocket system. This fundamental component of the drivetrain operates based on simple yet effective principles of physics.

Basics of Chain and Sprocket System

At the heart of every dirt bike lies the chain and sprocket system, which serves as the intermediary between the engine and the rear wheel. When the engine generates power, it rotates the front sprocket, causing the chain to move. As the chain moves around the rear sprocket, it transfers this rotational force to the rear wheel, propelling the bike forward.

This process relies heavily on the interaction between the teeth of the sprockets and the links of the chain. Proper alignment and tensioning of the chain ensure efficient energy transfer, minimizing friction and wear. Any misalignment or excessive slack can lead to poor performance and premature component failure.

Explanation of Gear Ratios

Gear ratios represent the relationship between the number of teeth on the front and rear sprockets. A higher gear ratio occurs when the rear sprocket has more teeth relative to the front sprocket, resulting in increased torque and reduced speed. Conversely, a lower gear ratio arises when the front sprocket has more teeth compared to the rear sprocket, providing faster acceleration and higher speeds.

Calculating the gear ratio involves dividing the number of teeth on the front sprocket by the number of teeth on the rear sprocket. For example, if the front sprocket has 15 teeth and the rear sprocket has 45 teeth, the gear ratio would be 1:3. This means that for every rotation of the front sprocket, the rear sprocket completes three rotations.

Relationship Between Sprocket Sizes and Bike Behavior (Torque vs. Speed)

The size of the sprockets profoundly affects the bike’s behavior, particularly in terms of torque and speed. Larger rear sprockets increase torque, making it easier to climb steep inclines and maintain traction on loose surfaces. However, they also reduce top speed and acceleration. Smaller rear sprockets, on the other hand, enhance speed and acceleration but compromise torque, making them ideal for flat terrain or high-speed racing.

Similarly, changing the front sprocket size influences the bike’s response to throttle inputs. Increasing the number of teeth on the front sprocket improves torque, while decreasing it boosts acceleration. Therefore, riders must carefully consider their specific needs when selecting sprocket sizes to achieve the desired balance of torque and speed.

3. Types of Dirt Bike Sprockets

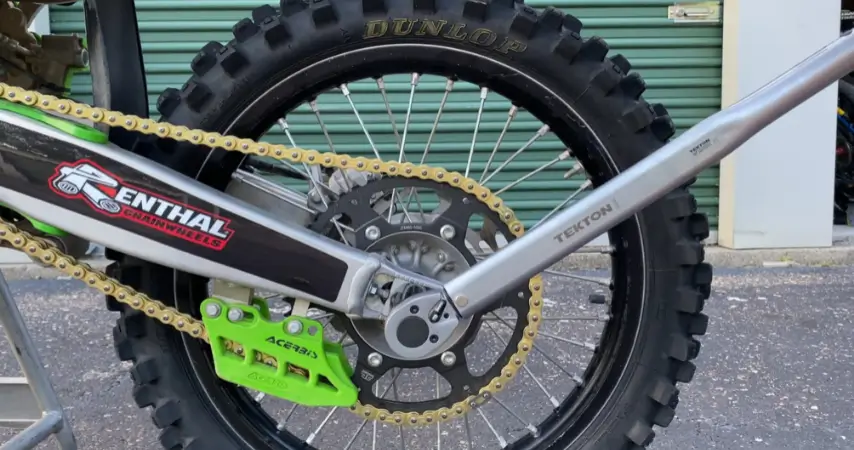

Types of Dirt Bike Sprockets

Understanding the different types of dirt bike sprockets available is vital for optimizing your bike’s performance. Each type offers unique advantages and is suited to particular riding scenarios.

Front (Countershaft) Sprockets

Characteristics

The front sprocket, also known as the countershaft sprocket, is located near the engine and plays a key role in determining the bike’s acceleration characteristics. It typically features fewer teeth than the rear sprocket, ranging from 13 to 17 teeth, depending on the model and application.

Material Options

Front sprockets are commonly made from durable materials such as steel, aluminum, or composite alloys. Steel sprockets offer excellent strength and longevity but may add weight to the bike. Aluminum sprockets provide a lighter option, improving overall handling and reducing unsprung mass. Composite alloys combine the benefits of both materials, offering a balance between durability and weight savings.

Rear Sprockets

Size Ranges and Design

Rear sprockets vary significantly in size, typically featuring between 42 and 50 teeth. Their design often includes chamfered edges to reduce noise and improve chain engagement. Some models incorporate special coatings or surface treatments to enhance durability and resistance to wear.

Steel vs. Aluminum vs. Hybrid

Steel rear sprockets remain popular due to their robustness and ability to withstand heavy loads. Aluminum rear sprockets are favored for their lightweight properties, which can improve acceleration and handling. Hybrid sprockets combine the best of both worlds, using steel for the core and aluminum for the outer ring, providing a durable yet lightweight solution.

Specialty Sprockets

Lightweight Racing Sprockets

Designed specifically for competitive racing, lightweight racing sprockets prioritize performance over longevity. These sprockets are crafted from high-strength materials and feature intricate designs to minimize weight without compromising strength. They are often used in professional motocross and supercross events where every ounce counts.

Long-Distance/Enduro Setups

For endurance riding, long-distance/enduro sprockets focus on reliability and extended service intervals. These sprockets are engineered to handle prolonged use under varying conditions, ensuring consistent performance over hundreds of miles. They typically incorporate reinforced teeth and specialized coatings to resist wear and tear.

4. Understanding Gear Ratios

Mastering the concept of gear ratios is essential for optimizing your dirt bike’s performance. By understanding how to calculate and interpret gear ratios, you can tailor your bike’s setup to suit specific riding conditions.

How to Calculate Final Drive Ratio

The final drive ratio is determined by multiplying the gear ratio of the front and rear sprockets. For instance, if the front sprocket has 15 teeth and the rear sprocket has 45 teeth, the gear ratio is 1:3. If the transmission ratio is 2:1, the final drive ratio becomes 1:6.

Understanding the final drive ratio helps riders anticipate how their bike will perform under different circumstances. A higher final drive ratio indicates greater torque and slower speeds, while a lower ratio suggests faster acceleration and higher top speeds.

Torque vs. Top Speed Balance

Balancing torque and top speed requires careful consideration of the gear ratio. Increasing the number of teeth on the rear sprocket enhances torque, making it easier to climb steep hills and maintain traction on loose surfaces. However, this comes at the cost of reduced top speed. Conversely, decreasing the number of teeth on the rear sprocket boosts acceleration and top speed but diminishes torque, making it suitable for flat terrain or high-speed racing.

How Sprocket Changes Affect Acceleration, Climbing Power, and Fuel Efficiency

Adjusting the sprocket sizes can significantly impact acceleration, climbing power, and fuel efficiency. Larger rear sprockets increase torque, allowing the bike to accelerate more effectively when climbing hills or navigating technical sections. However, they also consume more fuel due to the increased load on the engine. Smaller rear sprockets enhance fuel efficiency by reducing engine strain but may struggle to maintain momentum on steep inclines.

Fuel efficiency improvements become particularly noticeable during long-distance rides, where maintaining a steady pace is crucial. By carefully selecting the appropriate sprocket sizes, riders can strike a balance between performance and economy, maximizing their bike’s potential under various conditions.

Include Sprocket Ratio Calculator (or Link to One)

To simplify the process of calculating gear ratios, many online resources offer sprocket ratio calculators. These tools allow users to input the number of teeth on the front and rear sprockets, along with the transmission ratio, to determine the final drive ratio. Utilizing such calculators ensures accurate calculations and facilitates informed decision-making when customizing your dirt bike’s setup.

5. Choosing the Right Sprocket Setup

Selecting the optimal sprocket setup depends on several factors, including rider skill level, riding style, and specific terrain conditions. Tailoring your sprocket configuration to match these variables can yield significant performance gains.

For Beginners vs. Advanced Riders

Beginners often benefit from a more forgiving sprocket setup that prioritizes stability and ease of use. A slightly higher gear ratio, achieved by increasing the number of teeth on the rear sprocket, provides greater torque and makes it easier to navigate challenging sections. This setup reduces the likelihood of stalling or losing momentum, allowing to focus on developing their skills without worrying about frequent gear shifts.

Advanced riders, on the other hand, typically seek a more aggressive setup that emphasizes speed and agility. A lower gear ratio, achieved by decreasing the number of teeth on the rear sprocket, enhances acceleration and top speed, enabling experienced riders to exploit their expertise on demanding courses. However, this setup demands precise control and familiarity with the bike’s dynamics, making it less suitable for novices.

By Riding Style

Different riding styles necessitate distinct sprocket configurations to optimize performance. Motocross enthusiasts often favor a lower gear ratio, allowing their bikes to accelerate rapidly out of corners and maintain high speeds on straightaways. Trail riders, however, prefer a more balanced setup that accommodates varied terrain, striking a compromise between torque and speed. Enduro competitors require a versatile configuration capable of handling extended periods of off-road riding, emphasizing durability and reliability.

Common Gearing Setups for Different Brands

Each manufacturer designs its dirt bikes with specific performance characteristics in mind, influencing recommended sprocket setups. For instance, Honda models typically come equipped with standard gearing that suits general trail riding. Yamaha bikes often feature slightly taller gearing, catering to those who prioritize speed and efficiency. KTM motorcycles tend to employ shorter gearing, enhancing low-end torque for aggressive off-road performance. Consulting the manufacturer’s specifications or consulting with experienced riders can help identify suitable sprocket combinations for your particular bike.

6. When and Why to Change Your Sprockets

Recognizing signs of wear and damage in your dirt bike’s sprockets is crucial for maintaining optimal performance and preventing costly repairs. Regular maintenance and timely replacements ensure smooth operation and prolong the lifespan of your drivetrain components.

Signs of Wear and Damage

Worn sprockets exhibit visible signs of deterioration, such as rounded or broken teeth, excessive play between the sprocket and chain, and uneven wear patterns. These indicators suggest that the sprockets are nearing the end of their service life and should be replaced promptly. Ignoring these warning signs can lead to further damage, including chain breakage, gear skipping, and even engine failure.

Effects of a Worn Sprocket on Performance

A worn sprocket compromises the bike’s performance in several ways. First, it disrupts the smooth transfer of power from the engine to the rear wheel, leading to jerky acceleration and reduced responsiveness. Second, it increases friction within the drivetrain, accelerating wear on the chain and other components. Third, it introduces inefficiencies that decrease fuel economy and increase maintenance costs. Addressing these issues early prevents more extensive repairs down the line.

Maintenance Tips to Prolong Sprocket and Chain Life

Proper maintenance practices extend the life of your sprockets and chain. Regularly inspecting and cleaning the drivetrain removes debris and lubricates moving parts, reducing friction and wear. Adjusting the chain tension to the manufacturer’s specifications ensures optimal engagement between the sprockets and chain, minimizing stress on all components. Additionally, rotating the sprockets periodically distributes wear evenly across the teeth, delaying replacement needs.

7. How to Replace Your Sprockets

Replacing dirt bike sprockets requires specific tools and adherence to safety protocols to ensure successful completion. Following a systematic approach minimizes risks and maximizes the chances of achieving satisfactory results.

Tools You’ll Need

Before beginning the replacement process, gather all necessary tools. These include a chain breaker tool, a wrench set compatible with the sprocket bolts, a torque wrench for tightening bolts securely, and protective gloves and eyewear for personal safety. Ensuring you have everything ready beforehand streamlines the procedure and prevents unnecessary delays.

Step-by-Step Guide (Can Link to a Video or Diagram)

  1. Prepare the Bike : Secure the bike in a stable position using a stand or lifting device. Remove any obstructions or accessories obstructing access to the sprockets.
  2. Remove the Chain : Using the chain breaker tool, disconnect the chain from the rear sprocket. Carefully remove the chain and set it aside for later inspection.
  3. Unbolt the Sprockets : Loosen and remove the bolts securing the rear sprocket to the wheel hub. Be cautious not to lose any small washers or spacers during this step.
  4. Install New Sprockets : Position the new sprockets onto the wheel hub and secure them with the appropriate bolts. Tighten the bolts gradually, alternating between them to ensure even pressure distribution.
  5. Reconnect the Chain : Reattach the chain to the new sprockets using the chain breaker tool. Ensure proper alignment and tension before proceeding.
  6. Final Inspection : Conduct a thorough check of all connections and adjustments. Test the bike’s operation to confirm smooth functioning.

Safety Tips During Installation

Safety remains paramount throughout the entire process. Always wear protective gear, including gloves and eyewear, to safeguard against potential injuries. Double-check all connections and torques to prevent loosening or failure during operation. If unsure about any aspect of the procedure, consult a professional mechanic or refer to the manufacturer’s instructions.

8. Top Brands and Product Recommendations

Several reputable brands dominate the aftermarket sprocket market, offering diverse products tailored to various riding preferences. Comparing features and pricing helps identify the best options for individual needs.

Popular Aftermarket Sprocket Brands

  1. Renthal : Renowned for its innovative designs and superior quality, Renthal sprockets cater to both recreational and competitive riders. Their lightweight construction and precision engineering make them a favorite among enthusiasts.
  2. JT : Known for affordability and reliability, JT sprockets provide excellent value for money. They offer a wide range of sizes and materials to accommodate different riding styles.
  3. Supersprox : Specializing in high-performance sprockets, Supersprox combines advanced technology with user-friendly designs. Their products are particularly popular among racers seeking enhanced performance.

Comparison of Features and Prices

When comparing brands, consider factors such as material composition, weight, durability, and price point. Renthal sprockets generally command premium prices due to their premium materials and cutting-edge technology. JT sprockets offer competitive pricing without compromising quality, making them an attractive option for budget-conscious buyers. Supersprox strikes a balance between performance and affordability, appealing to riders who desire top-tier features at reasonable costs.

Pros and Cons

Each brand presents unique advantages and limitations. Renthal excels in innovation and build quality but may be cost-prohibitive for some. JT delivers solid performance at economical rates but lacks certain advanced features found in higher-end offerings. Supersprox offers a well-rounded package with notable features at moderate prices, though it might not match Renthal’s exclusivity.

9. Dirt Bike Sprocket Chart

Riding StyleFront Sprocket TeethRear Sprocket TeethFinal Drive RatioPerformance Focus
Stock/Standard13483.69Balanced speed and torque
Trail Riding13503.85More torque for hill climbs
Motocross14493.50Higher speed on open tracks
Enduro13524.00Strong low-end torque for obstacles
Supercross14513.64Smooth acceleration and control
Desert Racing15483.20Maximum top speed
Beginners13493.77Easier control, better acceleration

10. FAQs About Dirt Bike Sprockets

Addressing common queries helps clarify misconceptions and empowers riders to make informed decisions regarding their dirt bike’s sprocket setup.

What’s Better: More Teeth on the Rear or Fewer on the Front?

The answer depends on your specific requirements. More teeth on the rear sprocket increase torque, beneficial for climbing hills and maintaining traction. Fewer teeth on the front sprocket boost acceleration and speed, advantageous for flat terrain and high-speed racing. Balancing these factors requires considering your riding environment and personal preferences.

How Do I Know My Sprocket Size?

Consult your bike’s manual or contact the manufacturer for recommended sprocket sizes. Alternatively, measuring the existing sprockets provides accurate data for comparison. Ensuring compatibility with your current chain length is equally important when selecting new sprockets.

Can I Use a Different Chain with New Sprockets?

Yes, but careful consideration is required. New sprockets often necessitate a corresponding chain adjustment to maintain proper alignment and tension. Using an incompatible chain can result in suboptimal performance and increased wear on both the chain and sprockets.

Conclusion

In conclusion, dirt bike sprockets represent a cornerstone of your dirt bike’s performance, influencing its speed, torque, and overall handling. Grasping the fundamentals of sprocket mechanics and applying this knowledge to customize your bike’s setup enables you to maximize its potential under diverse conditions. Experimenting with different sprocket configurations allows you to discover the perfect balance that aligns with your riding style and objectives.

Encouraging experimentation fosters deeper insights into your bike’s capabilities, empowering you to refine your setup continually. Accessing reliable resources, such as online shops, maintenance tools, and calculators, further supports your journey toward optimized performance. Embracing this comprehensive approach ensures enduring satisfaction and enjoyment derived from your dirt biking adventures.
